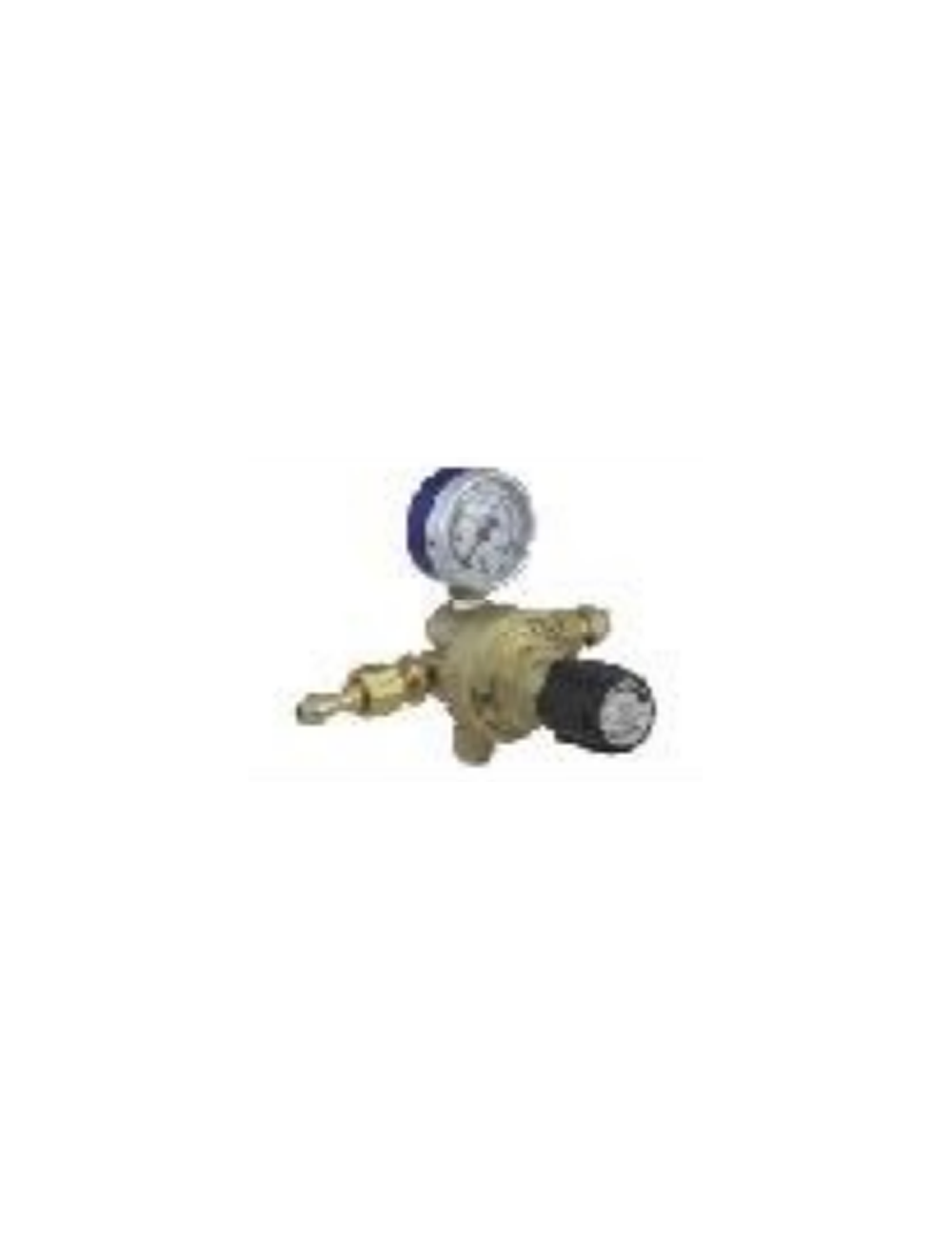

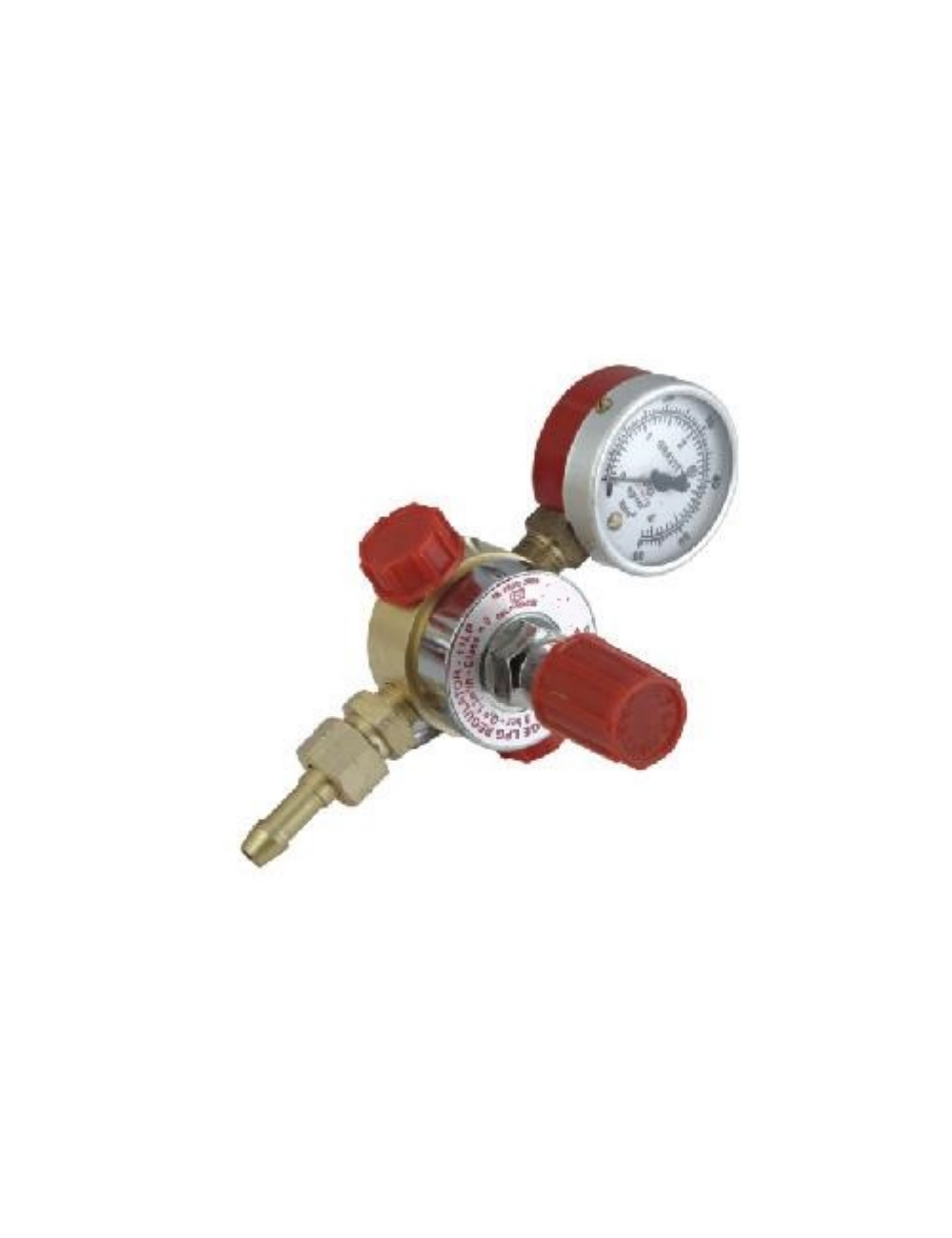

Single Stage L.P.G. Regulators

SKU:

1010001103

A brass SINGLE STAGE regulator with neoprene diaphragm for general purpose welding & cutting applications. The regulators are specifically designed to control flow of LPG, offering consistent, smooth operation featuring A well designed knob for pressure adjustments.

Key Features

Body & bonnet made from high strength brass.
Chrome plated bonnet 10 resist corrosion.
Can be connected directly to cylinder valve.
Single stage construction.
Compact design.
Conforms to IS:6901
PVC Molded adjustment knobs for smooth flow settings.

MATERIAL:

Body	High strength brass.
Boonet	Die forged brass.
Diaphragm	Twin layer, fabric reinforced.
Outlet Nut & Nipple	Brass
Spring	Steel
Pressure Gauge	50m.m, accuracy+3%
Pressure Setting Knob	PVC modled.
Weight	530 gms.(approx)

Description

Warranty

Description

Product Specifications

MODEL	ITEM CODE	MAX. INLET PRESSURE (BAR)	MAX. OUTLET PRESSURE (BAR)	INLET CONNECTION	OUTLET CONNECTION
11LP	1010001103	18	1.3	To fit directly on indusrtial LPG cylinder valve	318 BSP(LH)
10LP	1010001104	18	1.3	To fit directly on indusrtial LPG cylinder valve	318″ BSP(LH)
22LP	1010001109	18	1.3	7/8″8SP(LH) use adopter, supplied extra to fiton cylinder valve	318 BSP(LH)
